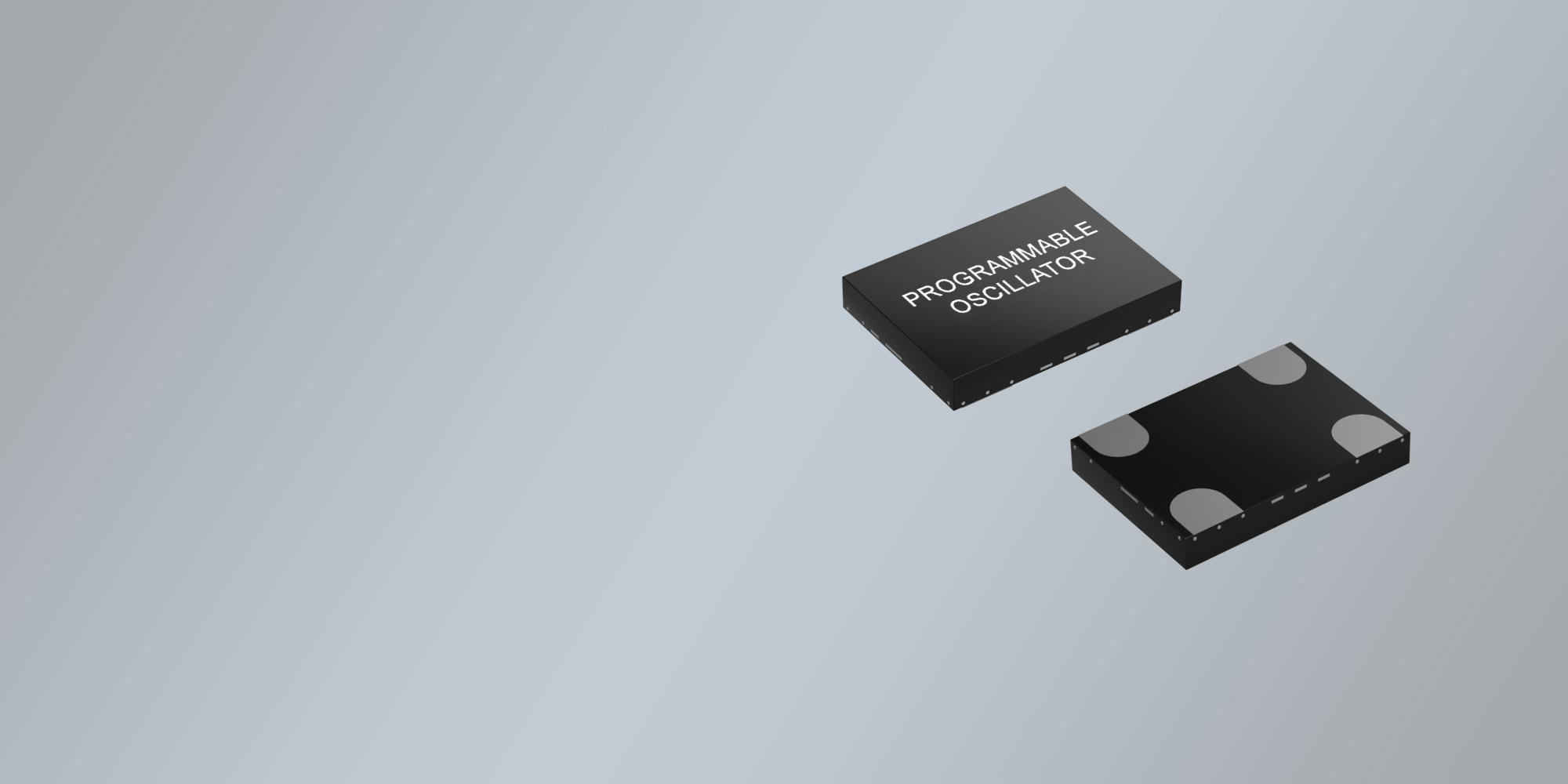

HIGH TEMPERATURE LOW POWER 1 - 137 MHz OSZILALLATOR

PROGRAMMABLE HIGH
TEMPERATURE LOW POWER
1 - 137 MHz OSCILALLATORS

HTLPOP

THE ADVANTAGES OF PROGRAMMABLE High Temperature Low Power OSCILLATORS

  • High Temperature Low Power Silicon Oscillator for Low Cost (MEMS- und crystal oscillator replacement)
  • Outstanding Jitter Performance
  • Excellent frequency stability as low as ±20 ppm over –40/+85°C
  • Operating temperature range from -40°C to 125°C
  • Excellent long time reliability
  • Standard dimensions of HTLPOP oscillator packages: 2.0 x 1.6 mm, 2.5 x 2.0 mm, 3.2 x 2.5 mm, 5.0 x 3.2 mm, 7.0 x 5.0 mm

  • SMD-Oscillator Series

    HTLPOP

  • Package

    Programmable SMD QFN/4Pad

  • Supply Voltage

    1.8V ~ 3.63V VDC

  • Frequency Stability

    ±20ppm ~ ±50 ppm

  • Output Signal

    LVCMOS/LVTTL

  • Applications

    All inclusive battery driven solutions

  • Operating temperature range

    0/+70°C ~ -40/+125°C

  • Storage temperature range

    -55/+125°C

Package Size (mm)
2.0 x 1.6
2.5 x 2.0
3.2 x 2.5
5.0 x 3.2
7.0 x 5.0
Frequency (MHz)
1.0  – 137.0
1.0  – 137.0
1.0  – 137.0
1.0  – 137.0
1.0  – 137.0

Datasheet SMD HTLPOP: High Temperature Low Power 1-110MHz Silicon Programmable Oscillator

High Temperature 1-110MHz Silicon Programmable Oscillator

Datasheet SMD HTLPOP: High Temperature Low Power 115-137MHz Silicon Programmable Oscillator

High Temperature 115-137MHz Silicon Programmable Oscillator
