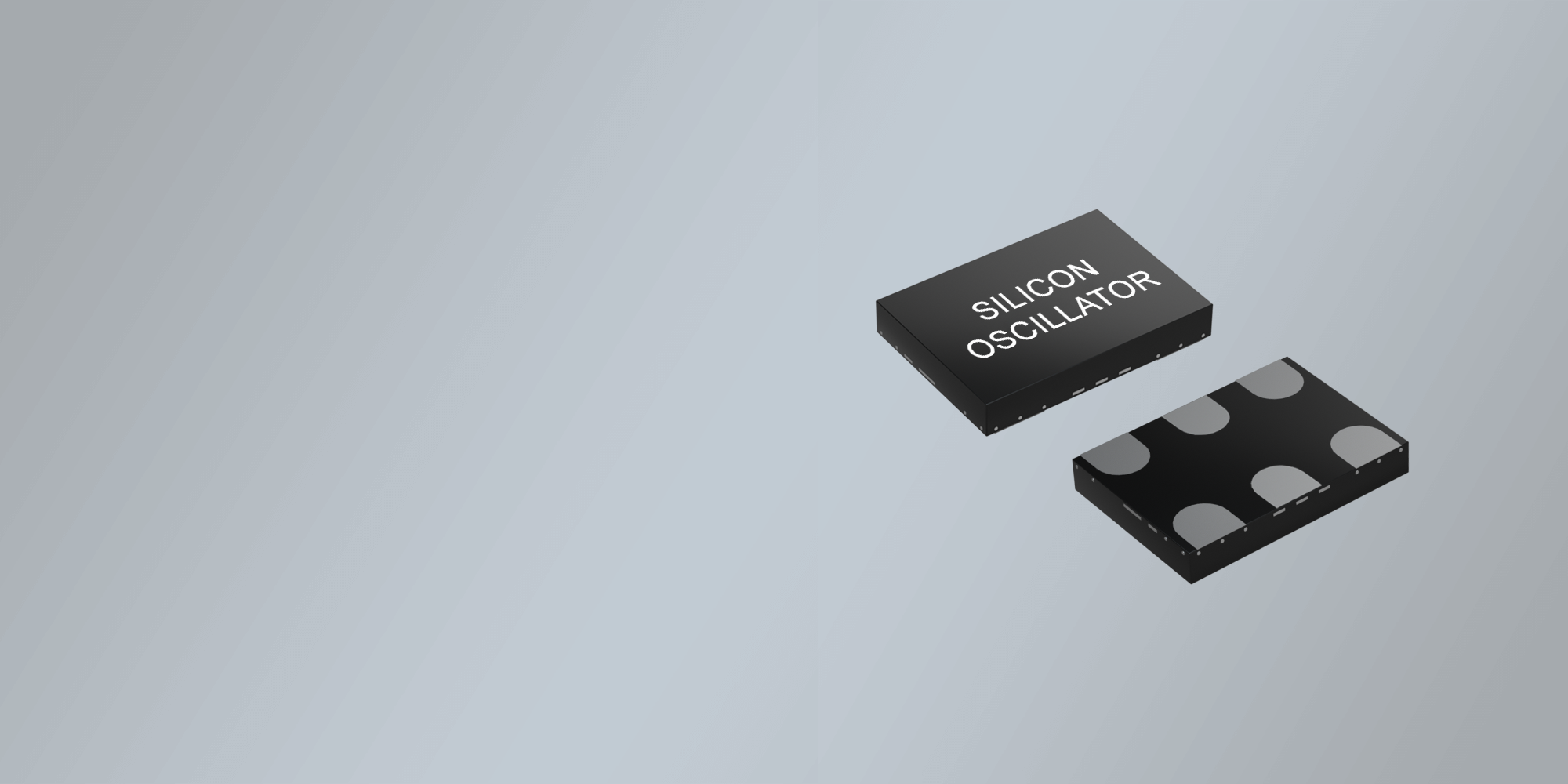

SMD DIFFERENTIAL LOW POWER 1 - 625 MHz OSCILLATOR

SMD DIFFERNTIAL 1 - 625 MHz
OSCILLATORS

Differential 1 - 625 MHz

THE ADVANTAGES OF Differential 1 - 625 MHz OSCILLATORS

  • 100% pin-to-pin drop-in replacement to quartz and MEMS based XO
  • Frequency range of 1 MHz and 625 MHz accurate to 6 decimal places
  • Standard dimensions of oscillators: SMD 3.2 x 2.5 mm, SMD 5.0 x 3.2 mm, SMD 7.0 x 5.0 mm
  • Cost-efficient Differentials Oscillators
  • Highest reliability and long operating life
  • Excellent frequency stability as low as ±10 ppm over –40/+85°C
  • Recommended for use in for PCI-Express Gen1, Gen2, Gen3 and Gen4 applications



  • SMD-Oscillator Series

    DLPO-3

  • Package

    SMD QFN/6pad

  • Frequency Stability

    ±10 ppm ~ ±50 ppm

  • Supply Voltage

    1.8V ~ 3.3V

  • Output Signal

    LVPECL / LVDS

  • Application

    All w/o automotive

  • Operating temperature range

    0/+70 ~ -40/+85°C

  • Storage temperature range

    -55/+125°C

Package Size (mm)
3.2 x 2.5
5.0 x 3.2
7.0 x 5.0
Frequency (MHz)
1.0  – 625.0
1.0  – 625.0
1.0  – 625.0

Datasheet SMD DLPO-3: SMD Differential 1-220MHz Silicon Oscillator

SMD Differential Silicon Oscillator DLPO-3 1-220MHz

Datasheet SMD DLPO-4: SMD Differential 220-625MHz Silicon Oscillator

SMD Differential Silicon Oscillator DLPO-4 220-625MHz
